I have a curtain wall which uses another wall type as the panel.
Revit curtain wall panel extend.
You can build the frame from a curtain wall and build a seperate continuous board wall in front of that.
P this video shows how to create a curtain panel family that has a corner mullion family built into it.
You edit a family in an existing panel and use an existing view to help you sketch the shape.
Select the curtain grid tool in architecture tab.
How to remove curtain wall panels to show elements behind.
Not sure what this would result in at the edges though.

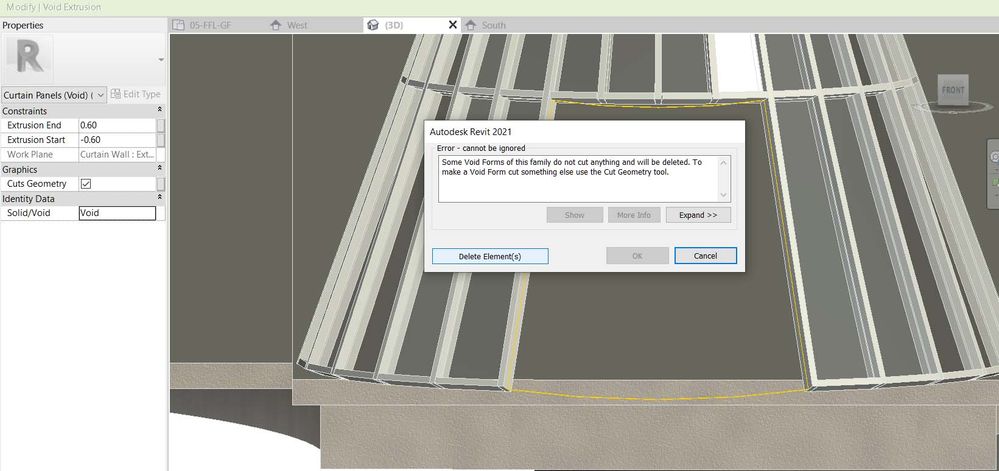

Reshape a curtain wall panel.
Here is how to fill it up with curtain wall elements.
Then click to add the curtain grid.
Trim or extend one element to a boundary defined by another element.
Start by creating a revit curtain wall object.
It seems that system panels are masses in place and not families which is why they are able to adjust to custom wall profiles.
Curtain wall panels cannot be deleted and can only be changed to a different type.

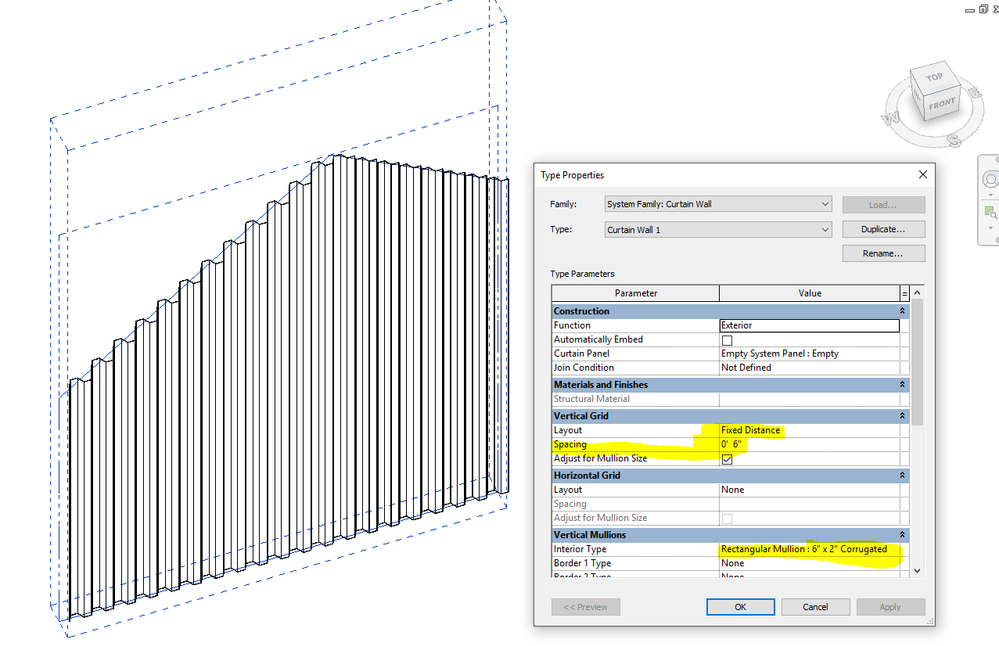

From the architecture tab add vertical and horizontal grid lines and make sure the top horizontal grid line is 8 from the top of the wall.
I ve set the curtain wall to disallow joins but i don t know how to do that for the panel separately.
Hover your mouse over the panel you would like to remove 2.
See image i m assuming that the panel is snapping to another wall in the model is there any way to prevent this.
Omit grid segments from curtain panels when customizing curtain panels in a curtain wall you can exclude segments from the grid to achieve the desired result.

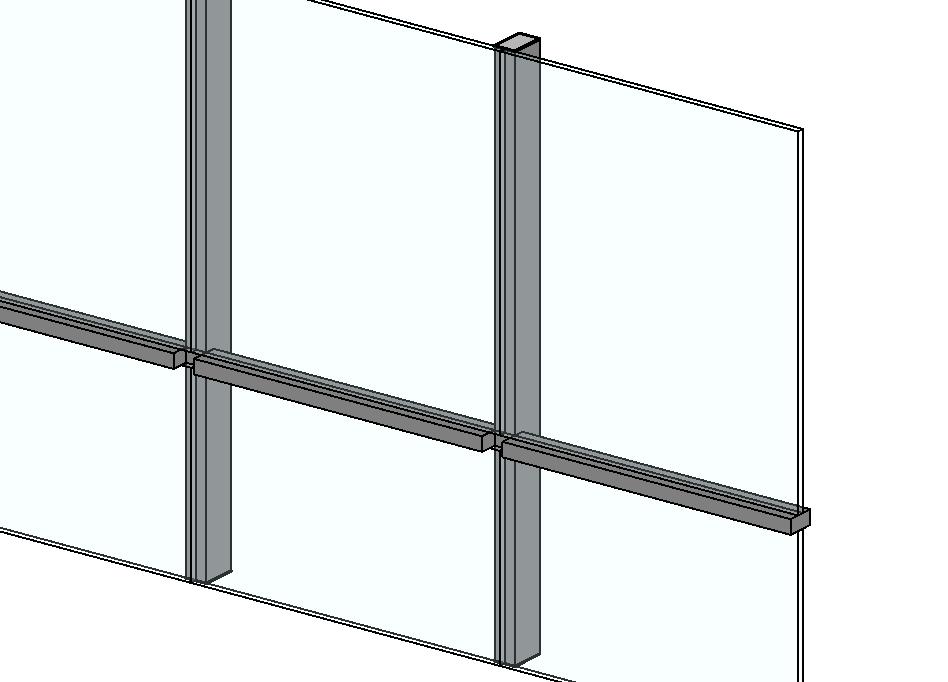

The one shown here is 10 0 long and 8 6 tall and represents a wall that requires a 6 mullion extension.
Detail line you employ colored guide line styles to help you sketch and trace.
Place your cursor on the edge of the curtain wall or with another curtain grid intersection.
This approach is useful because you can t create a custom mullion family in revit.

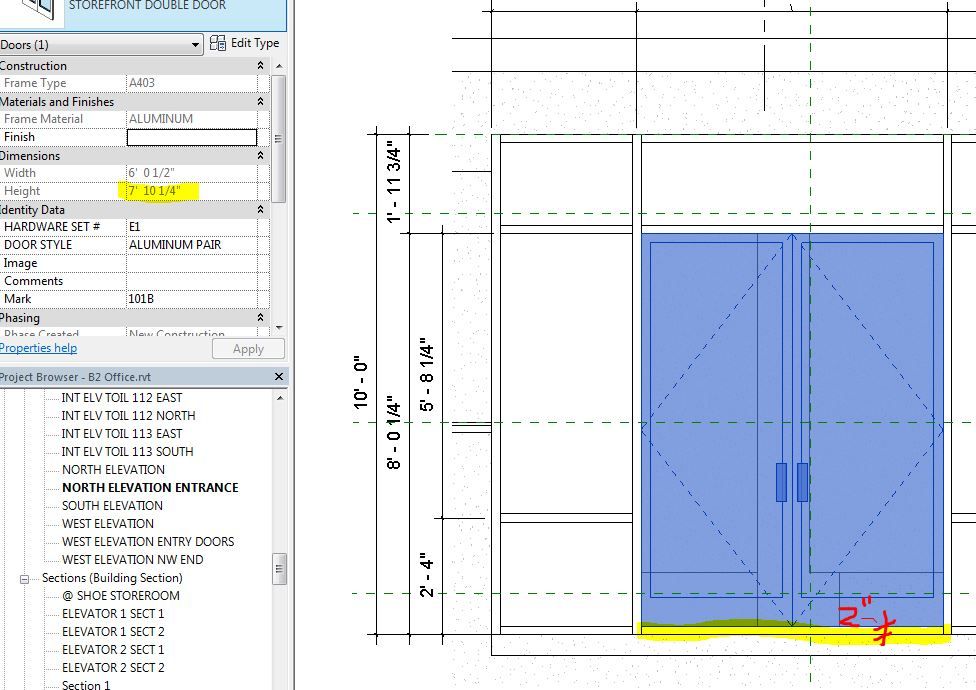

I ve had issues with the panel extending past the extents of the overall curtain wall.
Click modify tab modify panel trim drop down trim extend single element.
When selecting an element that needs to be trimmed to form the corner make sure you click the part of the element to be retained.
You can edit the panel family to extend half the width of the frames past it s fixed ends this way they will touch.
In a curtain wall divide a panel to create multiple panels by adding segments to the existing curtain grid.
Revit can only fill in the panels with the family curtain panels system panels.
Select each of the elements.
The actual size doesn t matter.
Replace the panel with an empty panel.
